Deskripsi Produk

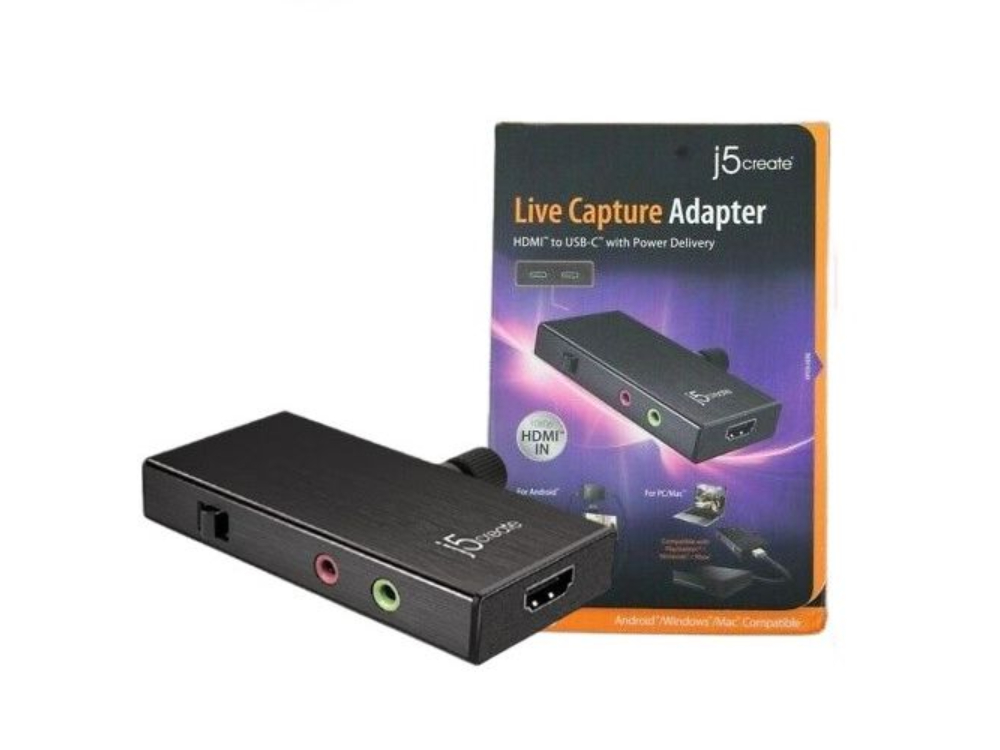

The perfect device for live streaming — the JVA02 Live Capture Adapter is a sleek, lightweight, and powerful HDMI™ capture card. It allows users to capture uncompressed 1080p video at 60 fps via USB™ 3.0, providing a remarkably clear picture and video playback. With Power Delivery 3.0, you can livestream without interruptions and charge your connected USB™ device at the same time. The JVA02 has a built-in audio mixer function allowing users to toggle between Mic In, HDMI™ In, or a combination of both inputs. It also includes a cold shoe adapter to attach to your camera for the perfect combination of ease-of-use and mobility.
Audio Input : 1 - 3.5mm AUX
Audio Output : 1 - 3.5mm AUX
Audio Switcher : Yes
Host Connector : 1 - USB-C® 3.1 Female
Ports : 1 - USB-C® 3.1 Gen 1 (Host); 1 - USB-C® PD 3.0; 1 - HDMI™ Input; 1 - 3.5mm AUX Audio Out; 1 - 3.5mm AUX Mic In
Power Source : Bus-powered or self-powered (USB-C® PD power)
Video Input : 1 - HDMI™ Female
Audio Channel : 2.1 via HDMI™
Audio Frequency : 48 kHz
Compressions : USB™ 3.0: MJPEG/YUV 4:2:2; USB™ 2.0: MJPEG
Encode Format : MP4, MJPEG, H.264 / AVC + AACX
Headset : 2.1 Stereo
Max Display Refresh Rate : 60 Hz
Microphone : Stereo microphone supported; 24-bit sigma-delta ADC
Supported Resolution - Input : 1920 x 1080
Input Current : 3A
Input Voltage : 20V
Output Current : 3A
Output Voltage : 20V
Power Consumption : ≤ 280mA
Power Delivery : Up to 60W via USB-C®
Cable Length : 3.3 ft (1m)
Color : Black
Enclosure Type : Aluminum
Operating Humidity : <80% non-condensing
Operating Temperature : 32 to 104°F (0 to 40°C)
Storage Humidity : <85% non-condensing
Storage Temperature : 14 to 149°F (-10 – 65℃)
